Direct Print

Appendix

Emulation

When using the emulation mode, you can get the print results similar to those of other companies' printers.

Overview of Emulation Feature

This machine is compatible with following emulation mode.

Emulation mode

Printer to be emulated

ESC/P

LQ1900K II+

PCL

HP-CLJ5500 (color), HP-LJ4200 (black and white)

HP-GL

7586B or DJ750C Plus

HP-GL/2

DJ750C Plus

Note

  • For details on each mode, contact your local representative.

Changing the print language

This machine is compatible with multi-emulation. Due to this, you can switch the corresponding print language.

Changing the command

There are commands to change the corresponding print language.

Automatic change

The machine analyzes the data received by the host interface and automatically identifies the print language.

Protocol dependence

You can fix the print language for each protocol (USB, IPP, LPD, Port9100, WSD).

Log in to Administrator Mode in Internet Services, and set Print Mode for each protocol in [USB] or [Protocols] of the [Network] tab.

Available font

User-defined characters (external fonts) can be used with ESC/P.

User-defined characters are registered as bitmap fonts and saved even after the power is turned off. Sharing between print languages is not possible.

Print Function

Emulation mode

N Pages

Form

Barcode

ESC/P

Yes

Up to 64

Yes

PCL

-

-

Yes

HP-GL, HP-GL/2

-

-

-
N Pages

2 pages are available.

Form

You can register standard forms and print the registered forms by synthesizing them into print data.

Note

  • If you try to register more forms than the maximum number of forms to be registered or if the form memory reaches full capacity, new forms cannot be registered.

Barcode

Barcode standards available for ESC/P are JAN code, CODE39, CODABAR, Industrial 2 of 5, Matrix 2 of 5, and Interleaved 2 of 5.

Barcode standards available for PCL are CODE39, CODE128, CODABAR, UPC, EAN, Postal barcode of Japan and QR code.

Output of Related List

Refer

Font

Available font can be confirmed by executing [Print] for [Font List] or [PCL Font List] in > [Device Status] > [Print Reports] > [Printer Reports].

Form

You can confirm the form by execute [Print] in > [Device Status] > [Print Reports] > [Printer Reports] > [ART IV, ESC/P User Defined List].

Barcode

You can confirm the method to specify commands by executing [Print] in > [Device Status] > [Print Reports] > [PCL Font List].

Associated Device Menu

Log in to Administrator Mode.

Emulation mode

[Port Settings]

[Allocate Memory]

[Delete Form]

ESC/P

Yes

Yes

Yes

PCL

Yes

-

-

HP-GL, HP-GL/2

Yes

Yes

-
Port Settings

Set in > [Device] > [Network Settings] > [Port Settings].

  • Enable port (USB/LPD/IPP/Port9100/WSD)

    Launch the port to be used in the emulation mode.

Allocate Memory

Set in > [Device] > [App Settings] > [Print Settings] > [Allocate Memory].

Note

  • If storage is attached, the settings cannot be changed.

Delete Form

Set the mode to delete forms in > [Device] > [App Settings] > [Print Settings] > [Delete Form].

Emulation Mode

The unique settings for each emulation modes can be changed in > [Device Status] > [Print Mode].

Note

  • [Retrieve Programming], [Store/Delete Programming] and [Default Programming] are displayed on ESC/P, HP-GL/2.

  • You can set these items also with Internet Services in the same procedure.

Retrieve Programming

Retrieve settings stored in the memory.

Programming

Enter the Item Number for the function in [Item Number] to display the current setting.

Enter the new value in [New Value] and tap on [Save] to change the setting.

Refer

  • Refer to Items for item number.

Store/Delete Programming

Store the current Items details [Custom Settings] in and delete stored memory.

Default Programming

Set the default values.

HP-GL, HP-GL/2 Emulation-specific Matters

Printable area

SEF

Paper

size

Paper length

(1/7200")

Coordinate value (1/7200")

X direction

Y direction

Margin

Printable area

Top right corner

Margin

Length

Width

Bottom left X

Bottom left Y

Long side

Short side

Top right X

Top right Y

XR

YU

A3

119052

84168

1260

1260

116532

81648

117792

82908

1260

1260

A4

84168

59508

1260

1260

81648

56988

82908

58248

1260

1260

A5

59508

41940

1260

1260

56988

39420

58248

40680

1260

1260

JIS B4

103176

72828

1260

1260

100656

70308

101916

71568

1260

1260

JIS B5

72828

51588

1260

1260

70308

49068

71568

50328

1260

1260
LEF

Paper

size

Paper length

(1/7200")

Coordinate value (1/7200")

X direction

Y direction

Margin

Printable area

Top right corner

Margin

Length

Width

Bottom left X

Bottom left Y

Long side

Short side

Top right X

Top right Y

XR

YU

A3

84168

119052

1260

1260

81648

116532

82908

117792

1260

1260

A4

59508

84168

1260

1260

56988

81648

58248

82908

1260

1260

A5

41940

59508

1260

1260

39420

56988

40680

58248

1260

1260

JIS B4

72828

103176

1260

1260

70308

100656

71568

101916

1260

1260

JIS B5

51588

72828

1260

1260

49068

70308

50328

71568

1260

1260

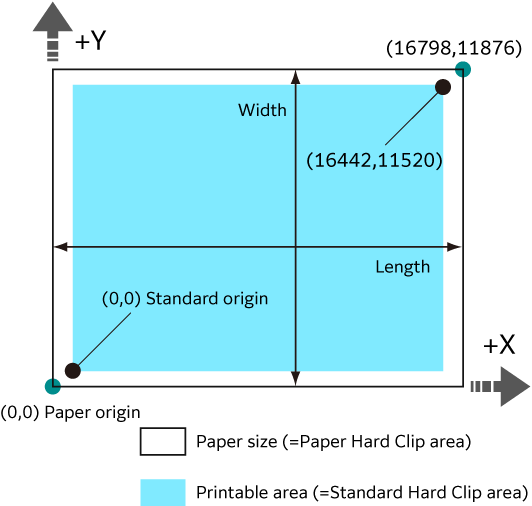

Hard Clip

Area determined by coordinates is called Hard Clip area.

Hard Clip area is determined by the printable area or paper size.

When the size is A3 and the starting point is the bottom left
Standard

Printable area of this machine is the Hard Clip area.

Paper

Same size as the paper is the Hard Clip area.

Auto Layout

Printed area is automatically determined based on the specified items, such as the document size and paper size.

[Original Size]

Set to [Auto Detect] when using Auto Layout.

[Auto Layout]

Reduce/enlarge the document data to fit the paper size.

[Zoom]

You can enlarge/reduce the printed area to fit the drawn object area in the paper size.

[Zoom Mode]

[Paper Size]

Document size is determined based on the drawn object area. Sizes to be determined are A sizes (6 types from A0 through A5).

[Coordinate Area]

Document size is determined based on the starting point of the drawn object area.
[Area Determine Mode]

[Auto]

Selected automatically. The priority order is [PS] -> [IW] -> [IP] -> [Adapted].

[IW]

Area specified by the last IW command within the data is the object area.

[IP]

Area specified by all IP commands is the object area.

[Adapted]

Object area is determined automatically.

[PS]

Area including the area specified by the PS command in the beginning is the object area.

Note

  • The object area is determined in [Adapted] without a command.

[Paper Margin]

You can specify the margin.

[Pen Attributes]

You can specify the setting for the pen to draw the boundary lines for the Hard Clip area.

You can set 16 attributes from [Pen Attributes 0] to [Pen Attributes 15].

[Pen Width]

If reduced by the combination of [Original Size] and [Paper Size], the pen width is also reduced.

Line width grows thicker from the center of the line.

If the width is 0.0 mm, nothing will be drawn.

[Line End]

You can specify the end shape for the pen.

[Line Intersect]

You can specify how pen lines are processed when connected.

Note

  • [None] has the shortest processing time and is suitable for checking.

  • If symbols are specified by symbol mode commands, connection process is not performed. Symbol mode commands refer to HPGL commands that specify symbols.

  • These settings are not valid for characters.

[Color]

Pen colors are specified with RGB. This setting is available for color printers.

[Density]

You can specify the pen intensity. This setting is available for black and white printers.

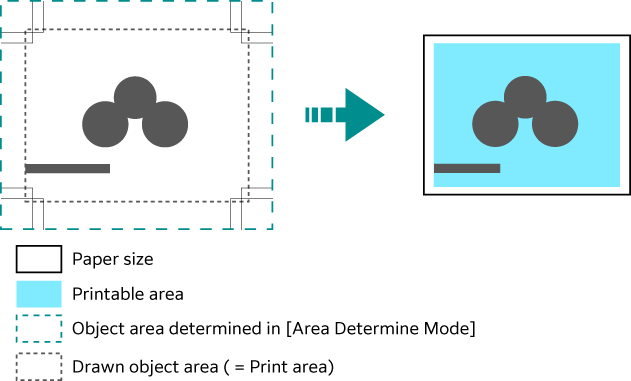

Item combination examples in Auto Layout

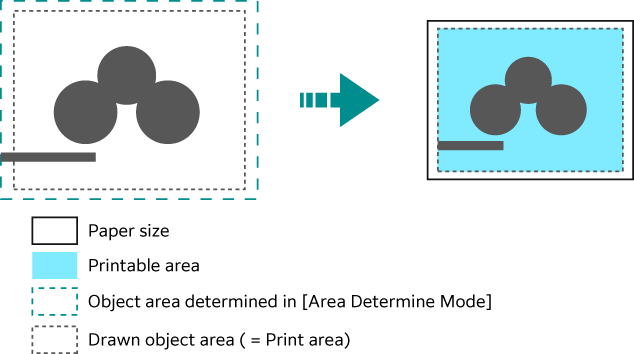

[Zoom Mode]: [Paper Size], [Zoom]: ON

Image is reduced/enlarged within the printed area and printed.

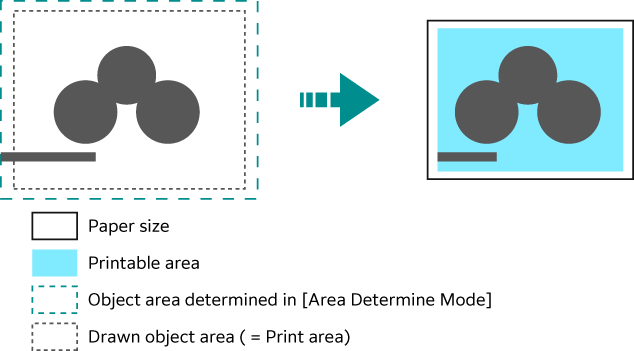

[Zoom Mode]: [Paper Size], [Zoom]: OFF

Image is printed in the actual size.

Due to this, areas larger than the paper size are not printed.

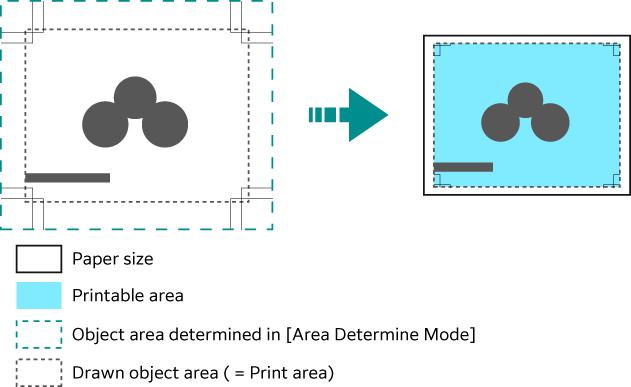

[Zoom Mode]: [Coordinate Area], [Zoom]: ON

Image is reduced/enlarged within the printed area and printed.

[Zoom Mode]: [Coordinate Area], [Zoom]: OFF

Image is printed in the actual size.

Due to this, areas larger than the paper size are not printed.

How to determine the document size
  1. The largest value among the following values is added as the margin to the object area determined in [Area Determine Mode].

    • Character size specified within the page

    • Default character size

    • Half of specified pen width

  2. “Object area determined in the area determination mode” + “added margin” - “specified paper margin” will be the drawn object area.
  3. If [Zoom Mode] is [Paper Size], the document size is determined based on the drawn object area.

    If [Zoom Mode] is [Coordinate Area], the document size is determined based on the starting point of the drawn object area.

Determination method example

If [Auto Layout] = ON, [Original Size] = [Auto Detect], [Zoom Mode] = [Paper Size], [Area Determine Mode] = [IP] and [Paper Margin] = 10 mm, and [Pen Attributes] of [Pen Width] = 0.1 mm

Note

  • There is no character size specification command, and area specified by [IP] and [IW] is A3.

Determination method
  1. Areas “-8399, -5938, 8399, 5938” specified by IP commands are the object areas.
  2. There is no character size specification command, and the pen width is 0.1 mm, so half of the A3 size default character size height (75 plotter unit) is added to the object area.

    Object area at this point : -8074,-6013,8474,6013

  3. Paper margin (10 mm) is removed from the object area.

    Object area at this point : -8474,-5613,8074,5613

  4. Since the drawn object area (printed area) is greater than A4 and equal to or smaller than A3, the document size is A3.
How to determine the paper size
If [Original Size] is [Auto Detect] and [Paper Supply] is [Auto Select]

  • If [Zoom Mode] is [Paper Size] and the same size paper as the document size is loaded in the tray, the paper size is the same as the document size.

  • If [Zoom Mode] is [Coordinate Area], the paper size is the object area determined in the area determination mode.

Note

  • If the same paper size is not available, the following size is selected.

    • Exceeding the maximum size: Maximum size

    • Under the minimum size: Minimum size

    • Between the minimum and maximum sizes: Fitting size

How to determine the reduction rate
If [Original Size] is [Auto Detect] and [Zoom Mode] is [Paper Size]

Reduction rate is determined by the drawn object area and [Paper Size]. Hard Clip area is [Paper].

  • If Auto Layout is [Auto Layout], the document is placed at the center of the paper.

  • If the starting point is the bottom left or center, the starting points of the document and paper are aligned.

  • If the reduction rate is less than 22.5% (such as A0 -> A5), it will be the actual size.

If [Original Size] is [Auto Detect] and [Zoom Mode] is [Coordinate Area]

Reduction rate is determined by the starting point of the drawn object area and paper size. Hard Clip area is [Normal].

Maximum scale value is 210.0%, and the minimum scale value is 22.5%.

Paper

size

0°

90°

Minimum value

Maximum value

Minimum value

Maximum value

P2x - P1x

P2y - P1y

P2x - P1x

P2y - P1y

P2x - P1x

P2y - P1y

P2x - P1x

P2y - P1y

A3

7829

5485

73075

51200

5485

7829

51200

73075

A4

5485

3828

51200

35733

3828

5485

35733

51200

A5

3828

2648

35733

24720

2648

3828

24720

35733

JIS B4

6762

4723

63120

44088

4723

6762

44088

63120

JIS B5

4723

3297

44088

30773

3297

4723

30773

44088

Unit: Plotter unit

Items

In the table below, "ESC" of Item Number column stands for ESC/P, "PCL" for PCL, and "HP" for HP-GL and HP-GL/2.

Note

  • You can set the items also in Internet Services.

Items

Item Number

Specification value

ESC

PCL

HP

Document size

1

-

-

[0] : Postcard

[3] : A3

[4] : A4

[5] : A5

[14] : JIS B4

[15] : JIS B5

[21] : 8.5 x 14"

[22] : 8.5 x 13"

[23] : 8.5 x 11"

[24] : 11 x 17"

[99] : Paper size

[100] : Continuous paper (10 x 12)

[101] : Continuous paper (10 x 11)

[102] : Continuous paper (15 x 12)

[103] : Continuous paper (15 x 11)

Note

  • If continuous paper is specified, you cannot specify “paper position”.

Document size

-

-

101

[0] : A0

[1] : A1

[2] : A2

[3] : A3

[4] : A4

[5] : A5

[10] : JIS B0

[11] : JIS B1

[12] : JIS B2

[13] : JIS B3

[14] : JIS B4

[15] : JIS B5

[99] : Auto

[100] : Paper size

Paper size

If “Paper supply tray” is “Auto” or “Tray 5 (bypass)”

2

-

-

[0] : Postcard

[3] : A3

[4] : A4

[5] : A5

[14] : JIS B4

[15] : JIS B5

[21] : 8.5 x 14"

[22] : 8.5 x 13"

[23] : 8.5 x 11"

[24] : 11 x 17"

Paper size

If “Paper supply tray” is “Auto” or “Tray 5 (bypass)”

-

-

102

[3] : A3

[4] : A4

[5] : A5

[14] : JIS B4

[15] : JIS B5

[99] : Auto

[101] : A size

Paper size

If “Paper supply tray” is “Auto”.

-

202

-

[3] : A3

[4] : A4

[5] : A5

[14] : JIS B4

[15] : JIS B5

[21] : 8.5 x 14"

[22] : 8.5 x 13"

[23] : 8.5 x 11"

[24] : 11 x 17"

[25] : User defined paper

[30] : 8K

Paper size

If “Paper supply tray” is “Bypass tray”.

-

203

-

[3] : A3

[4] : A4

[5] : A5

[14] : JIS B4

[15] : JIS B5

[21] : 8.5 x 14"

[22] : 8.5 x 13"

[23] : 8.5 x 11"

[24] : 11 x 17"

[25] : User defined paper

Paper supply tray※1

3

201

103

[0] : Auto

[1] : Tray 1

[2] : Tray 2

[3] : Tray 3

[4] : Tray 4

[5] : Tray 5 (bypass)

[6]: Tray 6 (High Capacity Feeder)

[7]: Tray 7 (High Capacity Feeder)

Note

  • When this item is set to “Auto” and the paper of the same size is loaded in multiple trays in the same orientation, the system administrator sets the tray priority in [Priority] on the setting screen of each tray under > [Device] > [Paper Tray Settings].

Coordinate rotation

-

-

104

[0] : 0 ˚

[1] : 90 ˚

Color mode※2

5

-

-

[0] : Color

[1] : Black and white

-

216

-

[0] : Auto

[1] : Color

[2] : Black and white

-

-

105

[0] : Color

[1] : Grey scale

[2] : Black pen

Depth mode※3

-

-

105

[1] : Grey scale

[2] : Black pen

Auto Layout

-

-

106

[0] : ON

[1] : OFF

Palette priority specification

-

-

107

[0] : Command

[1] : Panel

Number of outputs

8

-

108

[1] to [250] : 1 to 250

Note

  • If the client computer specifies the number of printed copies, the value is reflected and printed. After printing, the setting on the operation panel will also be this value. However, the number of copies specified by the lpd port does not change.

-

212

-

[1] to [999] : 1 to 999

Ejected to※4

9

204

109

[0] : Top output tray/Center tray (lower level)

[1] : Side tray

[2] : Center tray (upper level)

[33] to [42]: Mailbox bin 1 to 10

[68]: Stacker

[69]: High capacity stacker

[80] : Finisher tray

[81] : Finisher ejection tray

2 sided

12

-

110

[0] : None

[1] : Opened horizontally

[2] : Opened vertically

-

206

-

[0] : OFF

[1] : ON

Binding method if 2 sided

-

217

-

[0] : Long side binding

[1] : Short side binding

Paper direction

19

205

-

[0] : Vertical

[1] : Horizontal

Paper position※5

20

-

-

[0] : No cut sheet feeder (left)

[1] : With cut sheet feeder (center)

Note

  • If there is no cut sheet feeder, the number of lines specified by VFU is fed when FF (page break command) is received. If there is a cut sheet feeder, there will be a page break.

Scale mode

54

-

-

[0] : Fixed scale

[1] : Arbitrary scale

[2] : Entire cut paper

Note

  • Fixed scale” refers to the scale automatically calculated based on the specified “Document size” and “Paper size”, and the printable area for the document size is printed to fit within the printable area of the paper size. Due to this, if the document size and paper size are the same, it is printed at 100% (scale). If the specification is two pages, two pages worth of the document size is printed to fit within the printable area of one paper size.

  • Arbitrary scale” refers to the scale specified in “Scale” > “Arbitrary scale”. The reference value of the scale is the top left of the printable area. This is the reference point for all characters, images, and graphics.

  • The entire cut paper area is printed in the printable area. “Entire cut paper area” refers to the scale automatically calculated based on the specified “Document size” and “Paper size”, and the physical paper size for the specified document size is printed to fit within the printable area of the paper size.

  • If continuous paper is specified in “Document size”, “Fixed scale” and “Entire cut paper area” produce the same printing result.

Arbitrary scale/vertical scale

17

-

-

[45] to [210] : 45 to 210%

Arbitrary scale/horizontal scale

18

-

-

Grid

22

-

-

[0] : Image

[1] : Font

Note

  • You can specify the printing method for 2 byte grid font.

Default font

-

207

-

[0] : CG Times

[1] : CG Times Italic

[2] : CG Times Bold

[3] : CG Times Italic Bold

[4] : Univers Medium

[5] : Univers Medium Italic

[6] : Univers Bold

[7] : Univers Bold Italic

[8] : Univers Medium Condensed

[9] : Univers Medium Condensed Italic

[10] : Univers Bold Condensed

[11] : Univers Bold Condensed Italic

[12] : Antique Olive

[13] : Antique Olive Italic

[14] : Antique Olive Bold

[15] : CG Omega

[16] : CG Omega Italic

[17] : CG Omega Bold

[18] : CG Omega Bold Italic

[19] : Garamond Antiqua

[20] : Garamond Kursiv

[21] : Garamond Halbfett

[22] : Garamond Kursiv Halbfett

[23] : Courier

[24] : Courier Italic

[25] : Courier Bold

[26] : Courier Bold Italic

[27] : Letter Gothic

[28] : Letter Gothic Italic

[29] : Letter Gothic Bold

[30] : Albertus Medium

[31] : Albertus Extra Bold

[32] : Clarendon Condensed

[33] : Coronet

[34] : Marigold

[35] : Arial

[36] : Arial Italic

[37] : Arial Bold

[38] : Arial Bold Italic

[39] : Times New

[40] : Times New Italic

[41] : Times New Bold

[42] : Times New Bold Italic

[43] : Symbol

[44] : Wingdings

[45] : Line Printer

[46] : Times Roman

[47] : Times Italic

[48] : Times Bold

[49] : Times Bold Italic

[50] : Helvetica

[51] : Helvetica Oblique

[52] : Helvetica Bold

[53] : Helvetica Bold Oblique

[54] : CourierPS

[55] : CourierPS Oblique

[56] : CourierPS Bold

[57] : CourierPS Bold Oblique

[58] : SymbolPS

[59] : Palatino Roman

[60] : Palatino Italic

[61] : Palatino Bold

[62] : Palatino Bold Italic

[63] : ITC Bookman Light

[64] : ITC Bookman Light Italic

[65] : ITC Bookman Demi

[66] : ITC Bookman Demi Italic

[67] : Helvetica Narrow

[68] : Helvetica Narrow Oblique

[69] : Helvetica Narrow Bold

[70] : Helvetica Narrow Bold Oblique

[71] : New Century Schoolbook Roman

[72] : New Century Schoolbook Italic

[73] : New Century Schoolbook Bold

[74] : New Century Schoolbook Bold Italic

[75] : ITC Avant Garde Book

[76] : ITC Avant Garde Book Oblique

[77] : ITC Avant Garde Demi

[78] : ITC Avant Garde Demi Oblique

[79] : ITC Zapf Chancery Medium Italic

[80] : ITC Zapf Dingbats

Default symbol

-

208

-

[0] : Roman 8

[1] : ISO 8859-1 Latin 1

[2] : ISO 8859-2 Latin 2

[3] : ISO 8859-9 Latin 5

[4] : ISO 8859-10 Latin 6

[5] : PC-8

[6] : PC-8 DN

[7] : PC-775

[8] : PC-850

[9] : PC-852

[10] : PC-1004 (OS/2)

[11] : PC Turkish

[12] : Windows 3.1 Latin 1

[13] : Windows 3.1 Latin 2

[14] : Windows 3.1 Latin 5

[15] : DeskTop

[16] : PS Text

[17] : MC Text

[18] : Microsoft Publishing

[19] : Math 8

[20] : PS Math

[21] : Pi Font

[22] : Legal

[23] : ISO 4 United Kingdom

[24] : ISO 6 ASCII

[25] : ISO 11 Swedish : names

[26] : ISO 15 Italian

[27] : ISO 17 Spanish

[28] : ISO 21 German

[29] : ISO 60 Norwegian v1

[30] : ISO 69 French

[31] : Windows 3.0 Latin 1

[32] : Windows Baltic

[33] : Symbol

[34] : Wingdings

[35] : UCS-2

Font size

-

209

-

[400] to [5000] : 4.00 to 50.00 points

Font pitch size

-

210

-

[600] to [2400] : 6.00 to 24.00 points

Number of font lines

-

211

-

[5] to [128] : 5 to 128 lines

Vertical position calibration

15

-

113

[0] : None

[1] to [500] : - 250 to + 250 mm

Note

  • You can specify the print position (or Hard Clip area).

Horizontal position calibration

16

-

114

2 page mode

21

-

-

[0] : None

[1] : Forward direction

[2] : Backward direction

Note

  • If horizontal is specified in “Document size”, the result is the same for both “Forward direction” and “Backward direction”.

Blank paper ejection※6

51

-

-

[0] : None

[1] : Yes

Note

  • You can specify the blank paper ejection.

  • If “None” is selected, a blank page is not generated in 2 page print or 2 sided print.

  • Blank paper is ejected if there is space created with external fonts or white objects even if “None” is selected.

Print digit range

52

-

-

[0] : Standard

[1] : Extension

Note

  • You can extend the right margin position.

  • If the right margin position is specified with a command, the position becomes the right edge.

Image enhancement

53

213

163

[0] : OFF

[1] : ON

Character grade

55

-

-

[0] : High grade

[1] : Draft

Reduced character

56

-

-

[0] : None

[1] : Yes

Note

  • Characters can be reduced if alphanumerics are printed.

Page length

58

-

-

[0] : 11 inches

[1] : 12 inches

1 inch perforation skip

59

-

-

[0] : None

[1] : Yes

Note

  • You can have 1 inch between each page.

  • This specification is enabled only if “No cut sheet feeder” is specified in “Paper position”.

Paper supply position

60

-

-

[0] : 8.5 mm

[1] : 22 mm

CR function※6

61

-

-

[0] : Return

[1] : Return line break

Note

  • This affects the print result of 8 bit dot image print command.

HP-GL mode

-

-

150

[0] : HP-GL

[1] : HP-GL/2

Note

  • This affects IW, OW, and UC commands.

  • If printing HP-GL/2 commands not including BP commands, specify “HPGL/2”.

Hard Clip

-

-

151

[0] : Standard

[2] : Paper

Ejection command

-

-

152 (SP)

[0] : OFF

[1] : ON

Note

  • You can specify the command to indicate the end of drawing.

  • Drawing is ended when the command specified here is received, and paper is ejected.

  • If multiple commands are specified, drawing is ended and paper is ejected when any of the commands is received.

-

-

153 (SP0)

-

-

154 (NR)

-

-

155 (FR)

-

-

156 (PG)

-

-

157 (AF)

-

-

158 (AH)

Scale

-

-

159

[0] : OFF

[1] : ON

Scale mode

-

-

160

[0] : Paper size

[1] : Object area

Area determination mode

-

-

161

[0] : Auto

[1] : PS

[2] : IW

[3] : IP

[4] : Adapted

Paper margin

-

-

162

[0] to [99] : 0 to 99 mm

Extension specification

62

-

-

[0] : Invalid

[1] : Valid

Note

  • Regular extension commands specify ESC, which is 1BH in hexadecimal notation, in the beginning, followed by “;” (semicolon = 3BH) as the extension to identify commands. If ESC codes and semicolons cannot be used on the host computer, specific alternate character strings can be used as extensions.

Extension

63

-

-

[&%] : 0x21 to 0x7e

Note

  • In order to be able to control with text codes, specify the extension of extension command (first 2 bytes). Enter 2 characters on the keyboard displayed on the screen.

Form composition※6

64

-

-

[0] : None

[1] to [64] : No.1 to No.64

Note

  • The form name displayed even after the form is deleted after specifying the form. In this case, the form is not composed.

Stapling

66

-

164

[0] : None

[1] : 1 location on top left

[2] : 2 locations on top

[3] : 1 location on top right

[4] : 2 locations on left

[5] : 2 locations on right

[6] : 1 location at bottom left

[7] : 2 locations at bottom

[8] : 1 location at bottom right

Bypass paper supply pause

67

-

165

[0] : None

[1] : Yes

Punch

69

-

166

[0] : None

[1] : Top

[2] : Bottom

[3] : Left

[4] : Right

Number of punched holes

70

-

167

[0] : 2 holes

[1] : 3 holes

[2] : 4 holes

Binary data (command is entered in hexadecimal notation) specification character string

72

-

-

[0] : OFF

[1] : &$%$

[2] : $?!#

0 font

73

-

-

[0] : 0

[1] :

HexDump

-

214

-

[0] : OFF

[1] : ON

Grey print

-

215

-

[0] : OFF

[1] : ON

Line end process

-

218

-

[0] : OFF

[1] : Add LF at the end

[2] : Add CR at the beginning

[3] : CR-xx

Note

  • With “CR-xx”, add LF at the end when CR and add CR at the beginning when LF/FF.

Default value for user defined paper size

-

219 (Short side)

-

[0] to [9999] : 0 to 999.9 mm

-

220 (Long side)

-

[0] to [9999] : 0 to 999.9 mm

Effective number of outputs

74

221

115

[0] : Protocol specification

[1] : Panel

[2] : Command

Barcode mode

75

-

-

[0] : Regular mode

[1] : Barcode mode

Note

  • Barcode outlines are clearly printed in the barcode mode.

Applicable product

-

-

169

[0] : HP750C

[1] : FX4036

Pen width

-

-

800 to 815

Item Number for No.00 is 800.

[0] to [255] : 0 to 25.5 mm

Pen end shape

-

-

850 to 865

Item Number for No.00 is 850.

[0] : Cut

[1] : Round

[2] : Rectangle

Pen connection shape

-

-

900 to 915

Item Number for No.00 is 900.

[0] : None

[1] : Cross

[2] : Round

[3] : Cut

Pen color※2

-

-

950 to 965

Item Number for No.00 is 950.

[0] to [255] : 0 to 255 (color)

Pen intensity※3

-

-

950 to 965

Item Number for No.00 is 950.

[0] to [100] : 0 to 100 (intensity)
  1. The number of trays differs depending on the model you use.
  2. This setting is valid for color printers.
  3. This setting is valid for black and white printers.
  4. The destination paper tray you can set differs depending on the model you use.
  5. This cannot be specified if “Continuous paper” is specified in “Document size”.
  6. This is not reflected if extension command is sent.
