Reference Guide

Preface

This reference guide lists various features that can be performed on the touch panel display.

In addition, this manual uses screen images that show all optional units and optional products equipped to describe operations.

The values set at the machine can be checked by printing out the Configuration Report.
The description in this manual may include functions that may not be available in your model, as well as models, options, and optional items that may not be available in all countries or regions. For details, contact your local representative.
For details of EP-BB, contact your local representative.

For details of the setup process, basic operations, maintenance, and convenient usages, refer to User Guide.
Refer to Logging in to Authentication Mode when logging in to Administrator Mode.
Refer to Internet Services help for details of Internet Services.

This manual may not be edited, modified or copied in whole or part without the written consent of the publisher.
Some parts of this manual are subject to change without prior notice.
The screen shots and the illustrations in this manual are used as examples. They may differ from yours depending on the model, the software, or the OS.

November 2024 GM1955E2-2 Edition 1

The following notations and symbols are used in this manual, depending on the content being explained.

Important	Important information that you make sure to know and to read when you operate.
Note	Reference information on operations.
Refer	Reference destination information regarding the described topics.
" "	Names and inputs of folders, files, apps, and functions. Also reference pages of the manual.
< >	Keys of the keyboard, buttons and lamps of the optional units.
[ ]	Tab names, item names, button names, menu names, and file names on the printer operation screen.
>	The display order on the control panel. It is used as [Item name] > [Item name].
Italic Type	Indicates the manual referred to.

There are two paper loading directions: LEF and SEF.
The width, length, front edge, rear edge, top edge, and bottom edge of paper indicate the following positions. For the High Capacity Feeder and Paper Tray 5 (Bypass), the feeding direction is opposite.

LEF

Short side: Length, Long side: Width

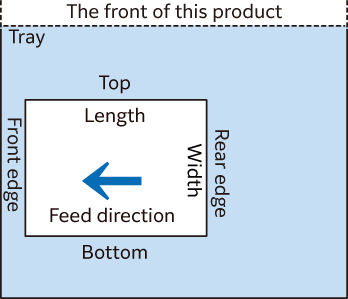

SEF

Long side: Length, Short side: Width
Some functions mentioned in this manual may not be used according to the model and installed optional units.
"WSD" is an abbreviation of "Web Services on Devices."
XPS stands for XML Paper Specification.
