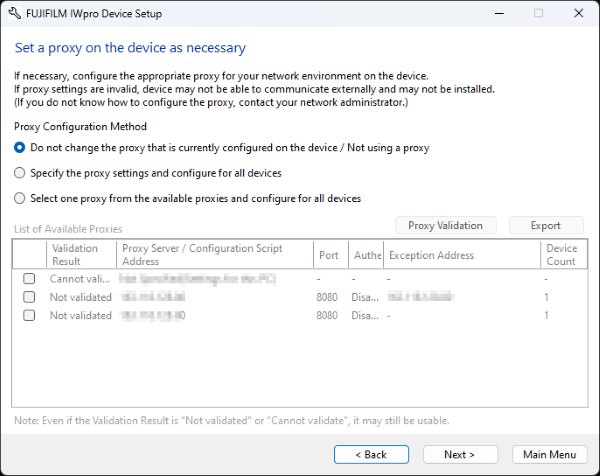

Proxy Server Configuration Screen

This screen is displayed in the following cases.

• When communication settings are configured and [Next] is clicked on the security settings screen
• When [Change Security Setting] is selected and [Next] is clicked on the maintenance operation selection screen, then a target device is selected from the device list and [Next] is clicked

[Do not change the proxy that is currently configured on the device / Not using a proxy]

Select this if an appropriate proxy server is already configured for all devices or if you do not want to change the proxy server.

If you select this item and click [Next], the process confirmation screen is displayed.

[Specify the proxy settings and configure for all devices]

Select this to configure a proxy server for the first time or set a new proxy server for all devices.

If you select this item and click [Next], the detailed proxy server configuration screen is displayed.

[Select one proxy from the available proxies and configure for all devices]

Select this to set a proxy server already set for some devices to the remaining devices.

If you select this item, the available proxy list screen is displayed.
