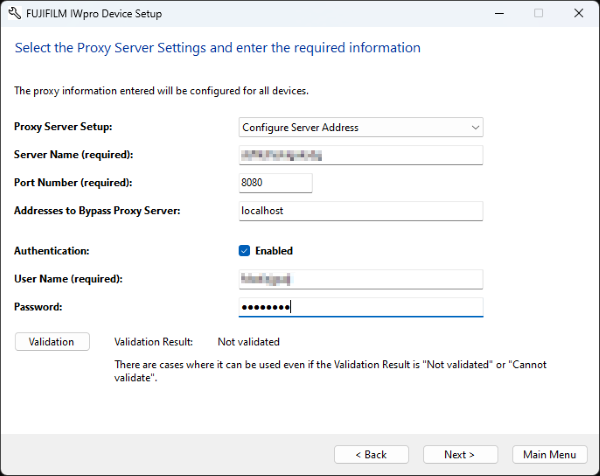

Detailed Proxy Server Configuration Screen

This screen is displayed by clicking [Next] with [Specify the proxy settings and configure for all devices] selected on the proxy server configuration screen.


[Proxy Server Setup]

Selects the method for specifying a proxy server.

[Server Name]

Enter the server name of the proxy server.

  • This is displayed when [Proxy Server Setup] is set to [Same Proxy for All Protocols].

[Port Number]

Enter the port number.

  • This is displayed when [Proxy Server Setup] is set to [Same Proxy for All Protocols].

[Addresses to Bypass Proxy Server]

Enter the addresses that will not use the proxy server. To set multiple addresses, separate them with semicolons. You can also use wildcards (asterisks).

  • This is displayed when [Proxy Server Setup] is set to [Same Proxy for All Protocols].

[Authentication]

To use proxy authentication, select [Enabled], and enter the login name and password in [User Name] and [Password].

  • This is displayed when [Proxy Server Setup] is set to [Same Proxy for All Protocols].

[Automatic Proxy Configuration Script URL]

When using an automatic proxy configuration script, enter a URL.

  • This is displayed when [Proxy Server Setup] is set to [Use Automatic Proxy Configuration Script].

[Validation]

Validates the entered proxy and displays the validation results.

[Next]

Displays the process confirmation screen.
