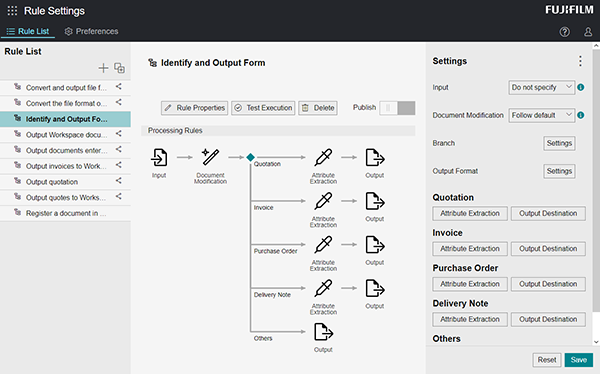

[Rule List] Screen

This screen is displayed by clicking [Admin Menu] > [Rule Settings] in the launcher menu.

It enables you to create new rules based on a template and check/edit the rules that have been created.

Header

[]

Displays the help.

[]

Enables you to check the user information and log out from the service.

You can click [Profile] to change the registered information, password, or e-mail address.

Left Side of Screen

Rule List

Displays a list of the available rules associated with the tenant you belong to.

Select a rule to display the details of the rule in the center of the screen.

[]

Displays the [Create New] screen.

[]

Select a rule in the rule list and click this to duplicate the rule.

This cannot be clicked if no rules have been added to the rule list (the default state).

Center of Screen

Displays the detailed information of the rule selected in the rule list.

Rule Name and Rule Description

Displays the name and description of the selected rule.

[Rule Properties]

Enables you to change [Name] and [Description].

On the displayed screen, change the rule name and rule description, and click [OK].

[Test Execution]

Displays the test execution warning screen, and the [Test Execution] screen is displayed if you click [Save Settings and Continue]. This enables you to test the rule operation and parameter settings.

[Delete]

Deletes the selected rule.

[Publish]

Sets whether to execute the created rule. Enable this to allow all users to execute the rule.

Rule Chart

Uses icons to display the flow of processes in the selected rule. If a process branches, it displays the branching conditions.

Right Side of Screen

Enables you to configure, check, and change the details of the rule.

• For details, see [Settings] screen.
