Configuring the Microsoft OneDrive for Business Administrator Settings

• This operation is performed by the administrator of Microsoft OneDrive for Business.
• Global administrator permissions are required to allow access.

Procedures and screens are subject to change without notice.

Register FUJIFILM BI Direct as an app.

1. Access the following URL in a Web browser, then log in with an administrator account for OneDrive for Business.
   https://entra.microsoft.com/
   • App creation permissions are required.

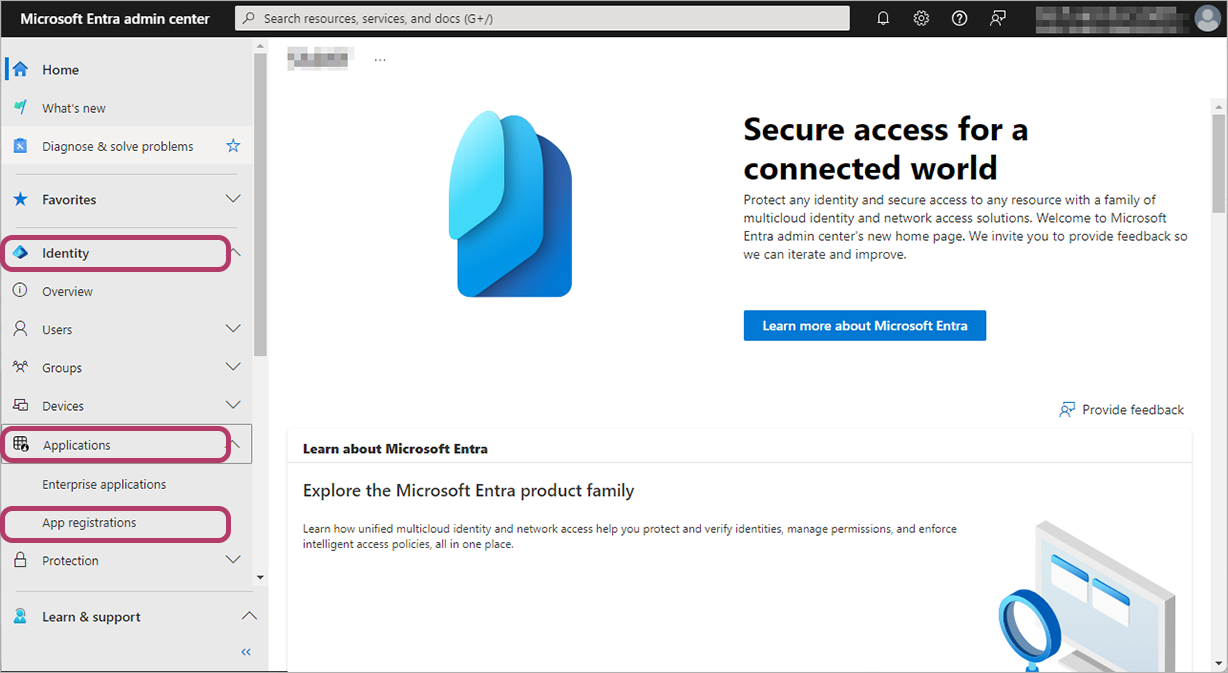

2. Click [Identity] > [Applications] > [App registrations] in the portal menu.




3. Click [New registration].

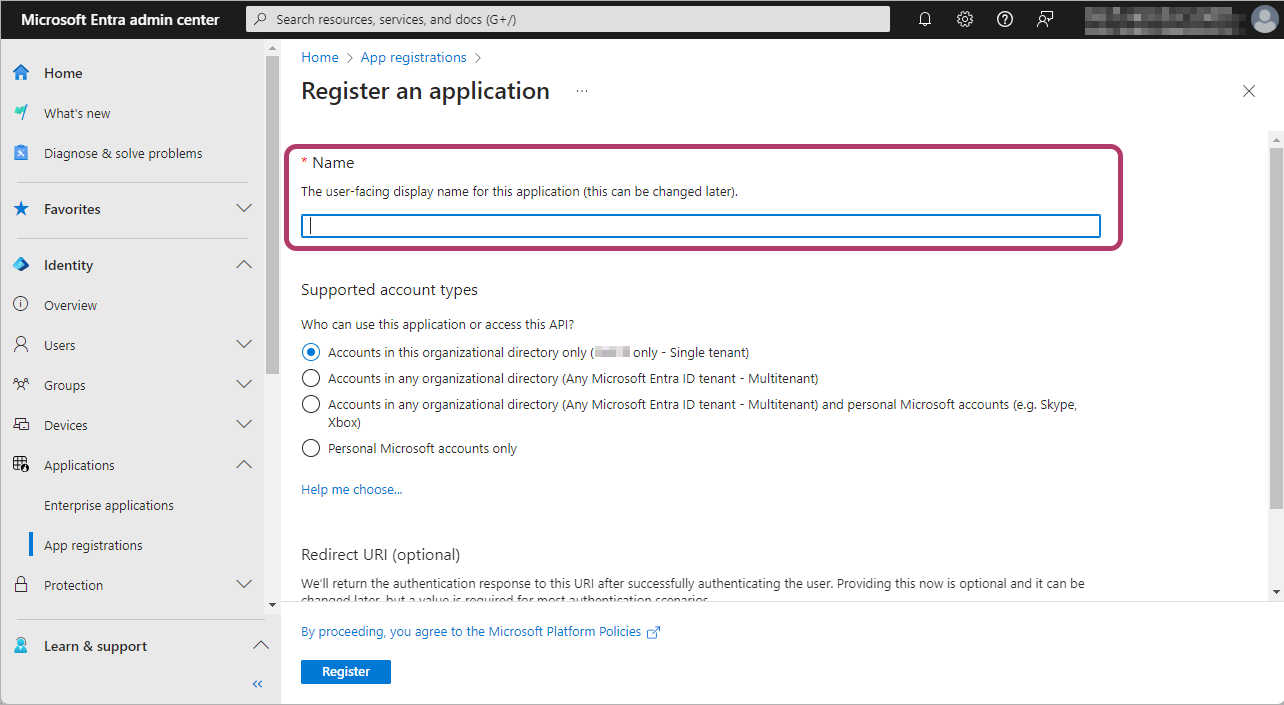

4. Enter a name of your choice in [Name].
   Example: "For FUJIFILM IWpro"



   • The registered app name is not used in FUJIFILM IWpro. Register a name that is easy for the OneDrive for Business administrator to identify.

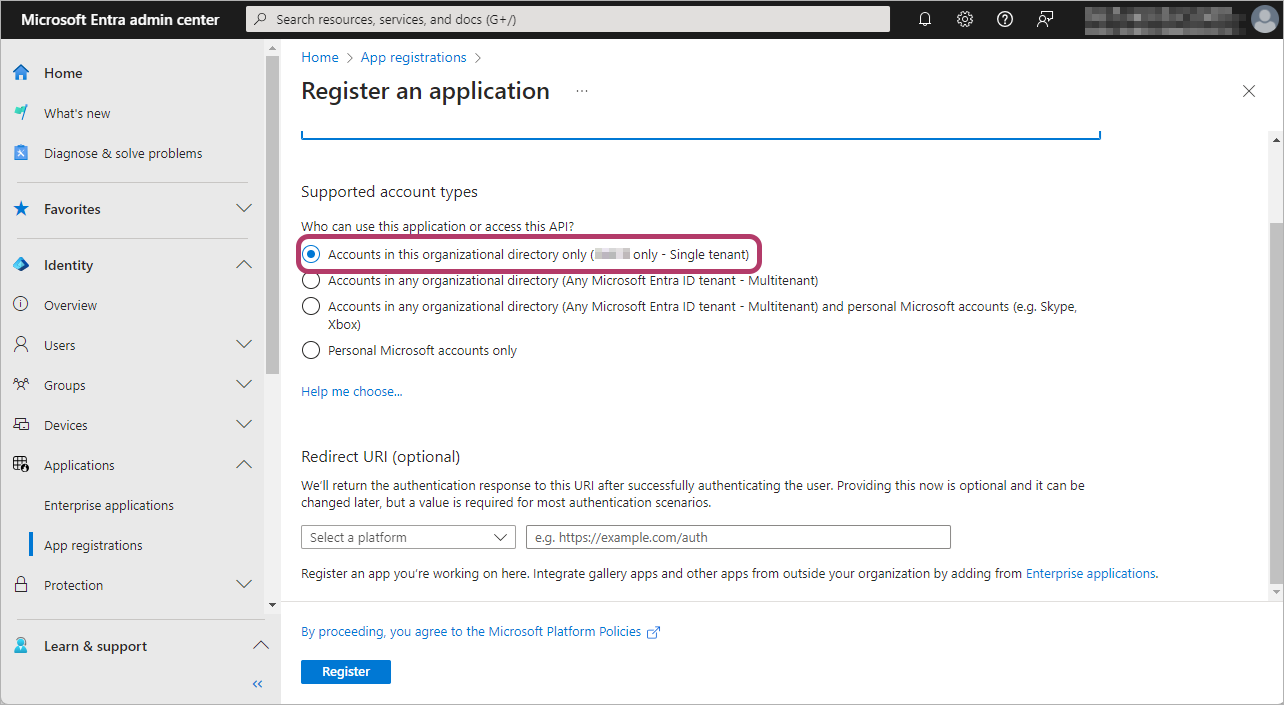

5. In the supported account types, select [Accounts in this organizational directory only ({organization name} only - Single tenant)].

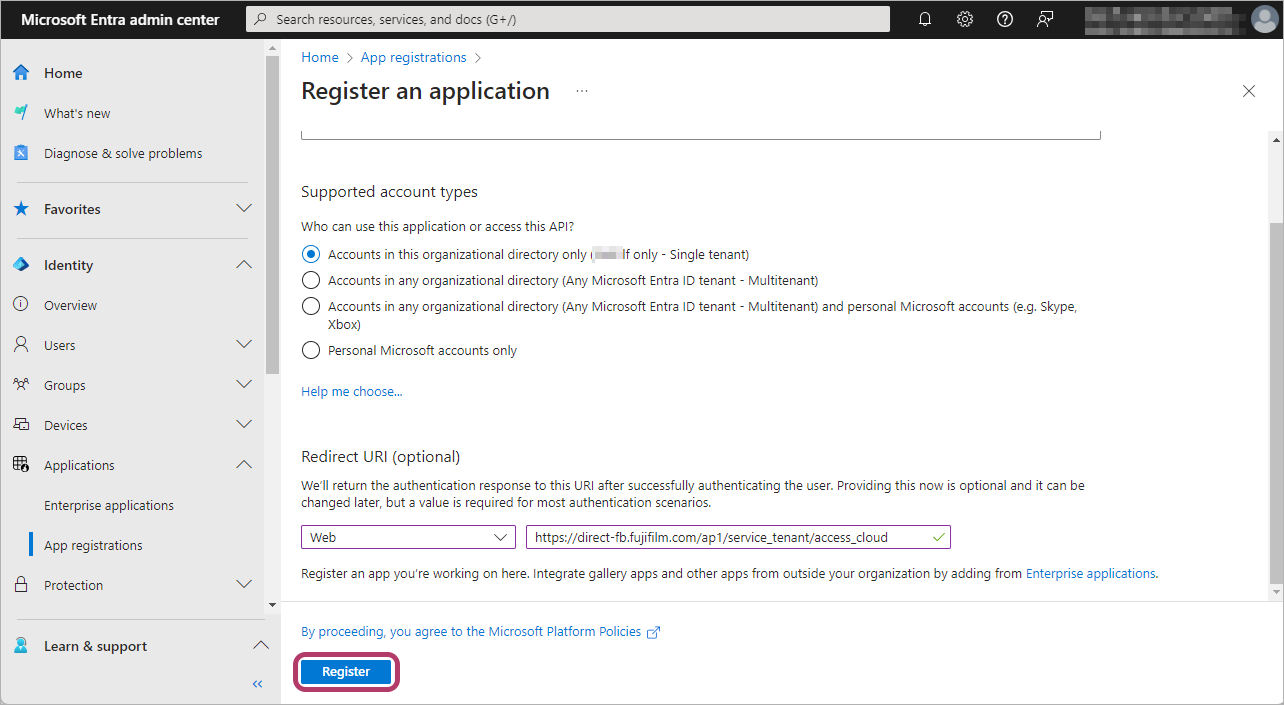

6. Select [Web] in the platform selection of the direct URI, and enter the following value.
   https://direct-fb.fujifilm.com/ap2/service_tenant/access_cloud



7. Click [Register].




Configuring App Authentication Settings

Configure authentication for the registered app, then make a note of the string in [Value] in [Client Secret], which is required for linking with FUJIFILM BI Direct.

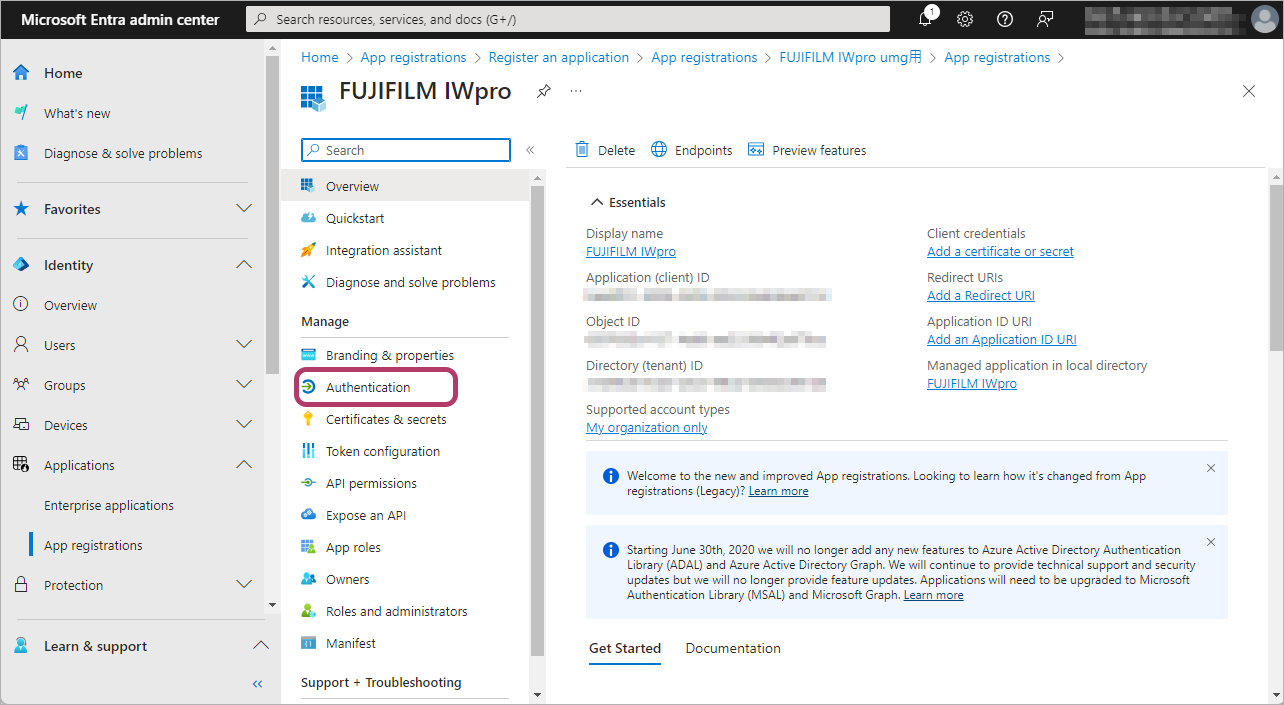

1. Click [Authentication] in the menu.

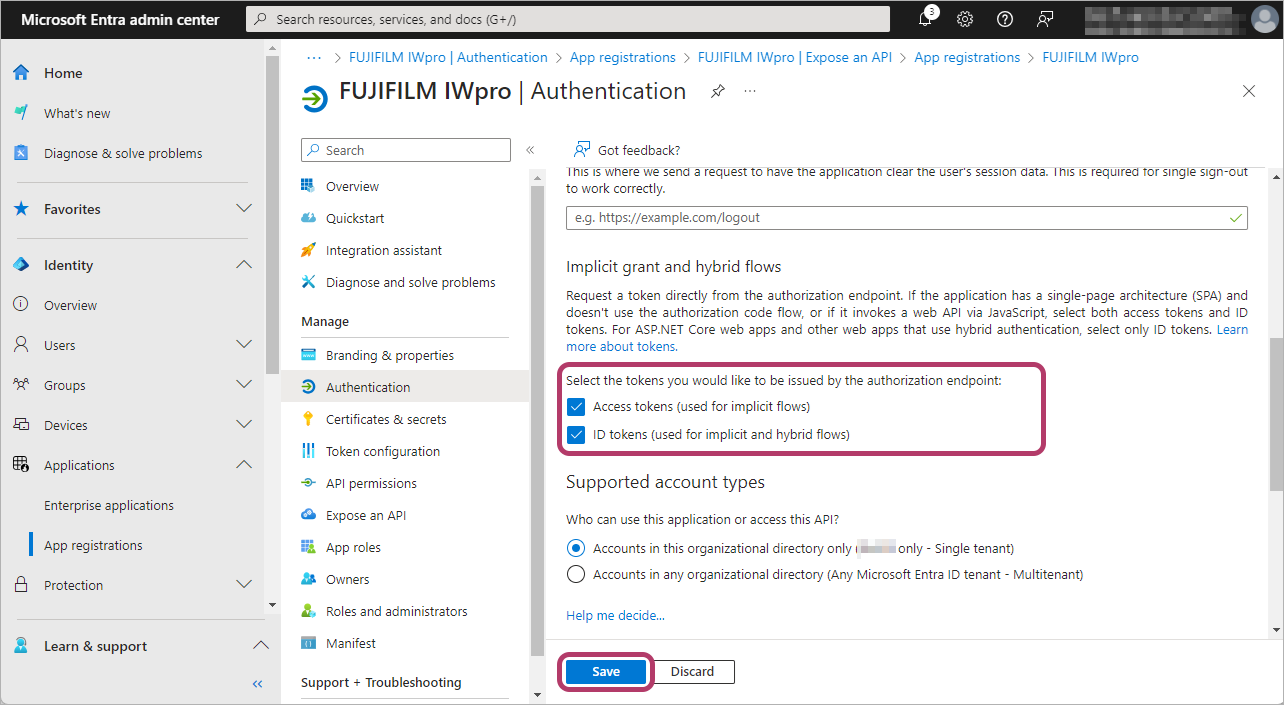

2. Select [Access tokens (used for implicit flows)] and [ID tokens (used for implicit and hybrid flows)], then click [Save].

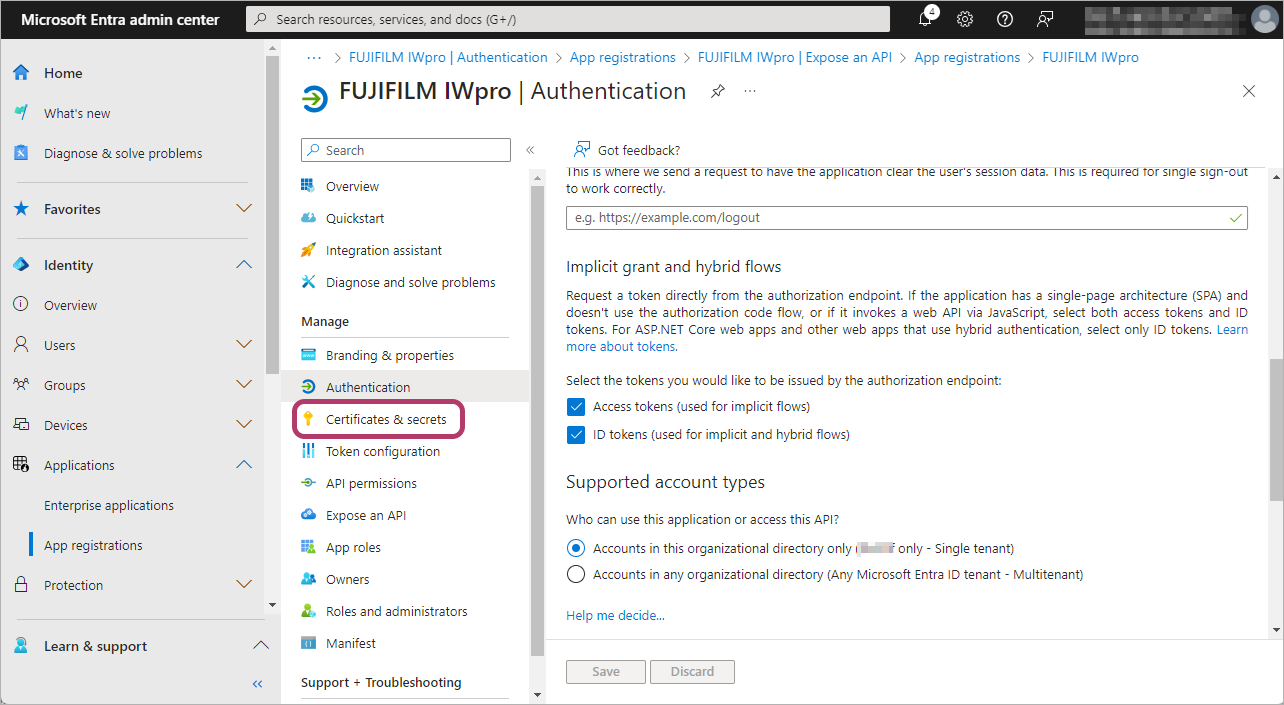

3. Click [Certificates & secrets] in the menu.




4. Click [New client secret].

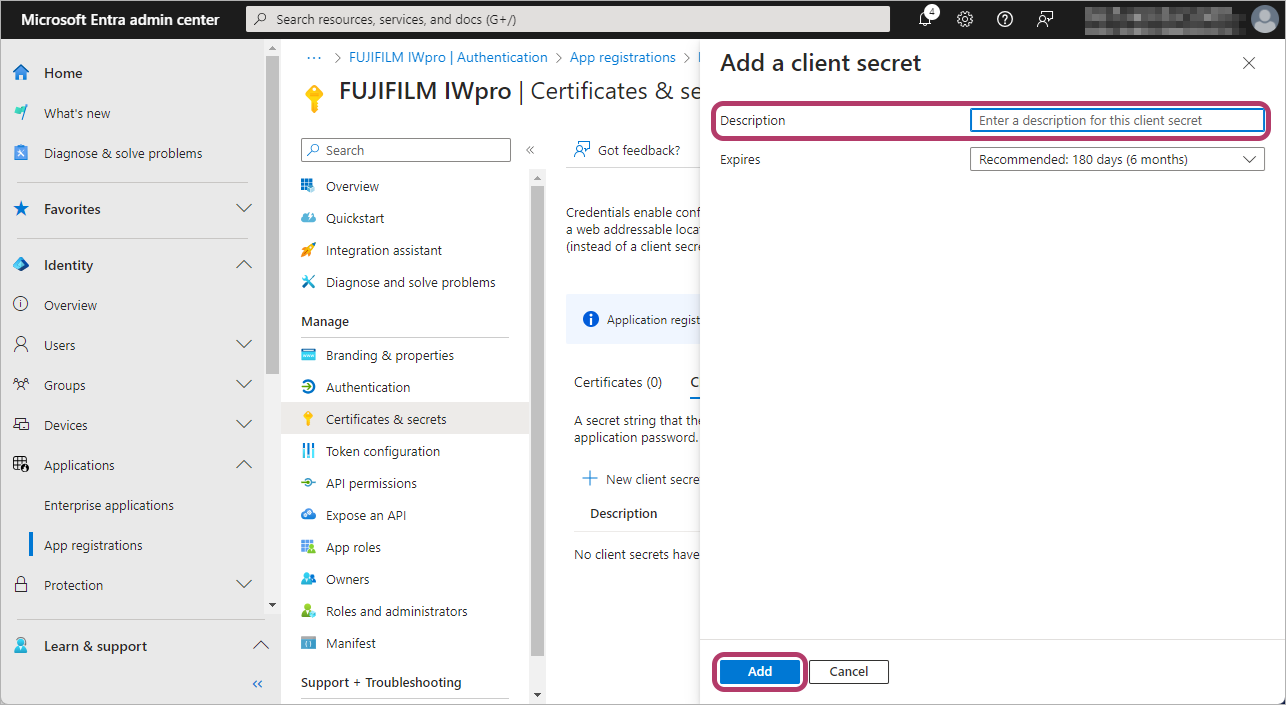

5. Enter a description in [Description], then click [Add].
   Example: "For FUJIFILM IWpro"



   • By default, a client secret expires after six months. You can extend this to a period of up to two years.
   • A link error will occur once the client secret expires. If an error occurs, follow the procedure in Updating a Microsoft Entra Client Secret.
6. Make a note of the string in [Value] in [Client secrets].




   • [Client secrets] contains the [Value] and [Secret ID] settings. The string in [Value] is used.
   • The value of the client secret cannot be displayed after refreshing the [Certificates & secrets] screen. If you did not make a note of the string in [Value], create a new client secret.

Configuring Linked Items

Configure the items required for linking with FUJIFILM BI Direct.

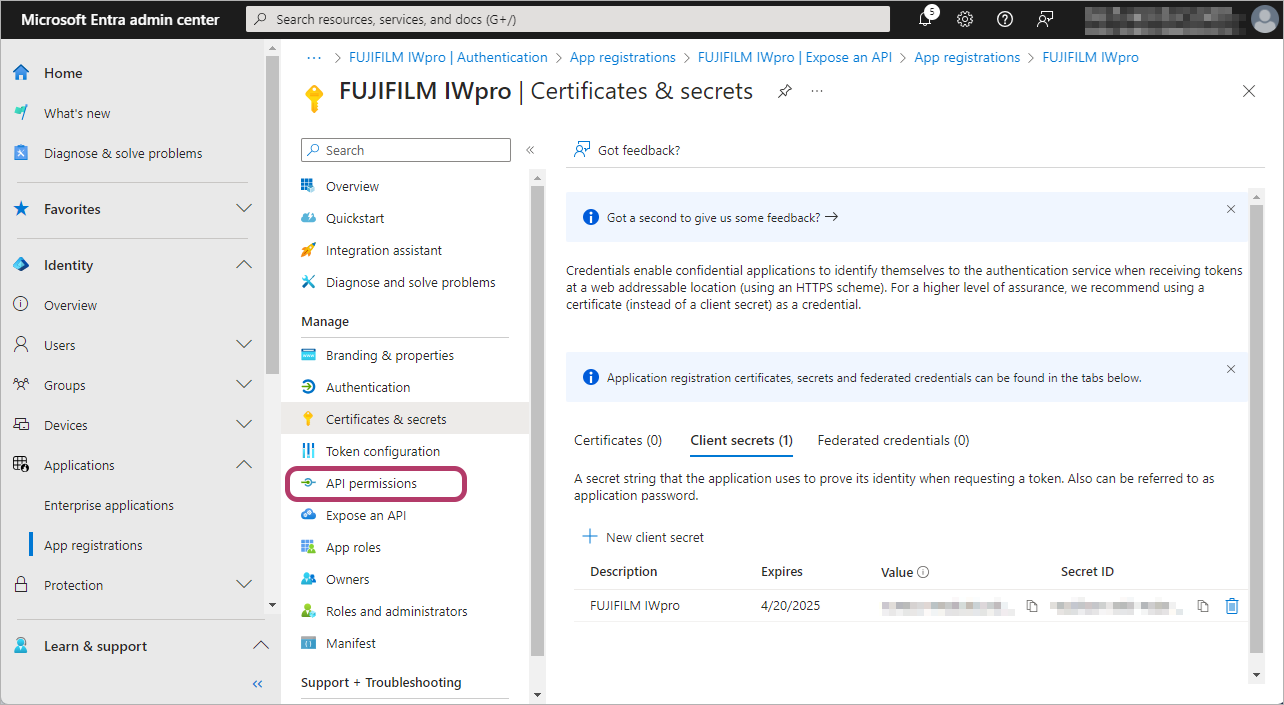

1. Click [API permissions] in the menu.

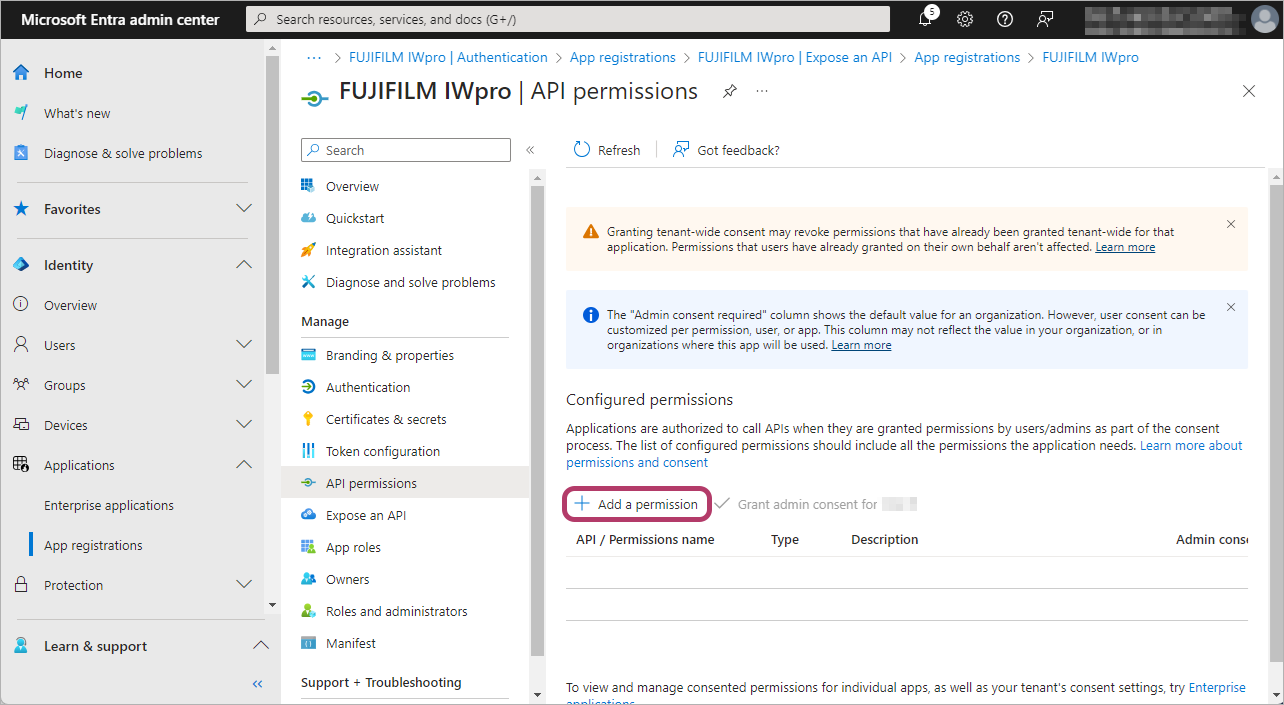

2. Click [Add a permission].

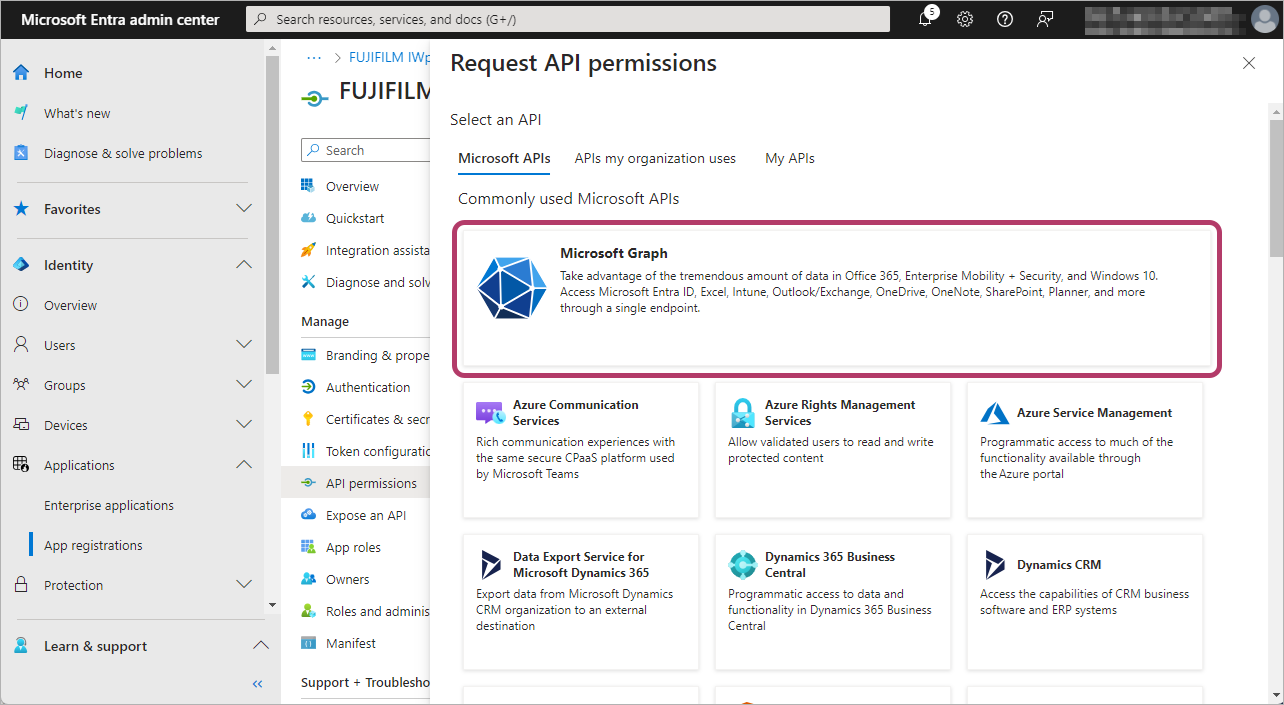

3. Click [Microsoft Graph].

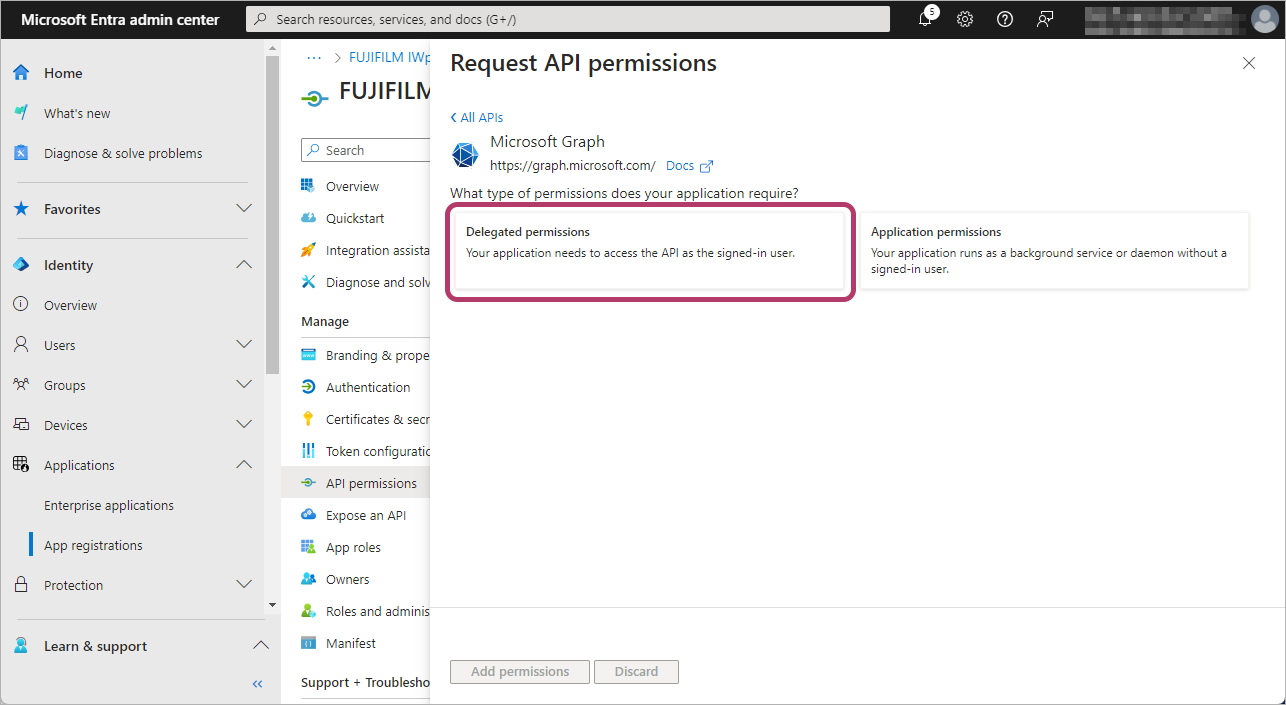

4. Click [Delegated Permissions].

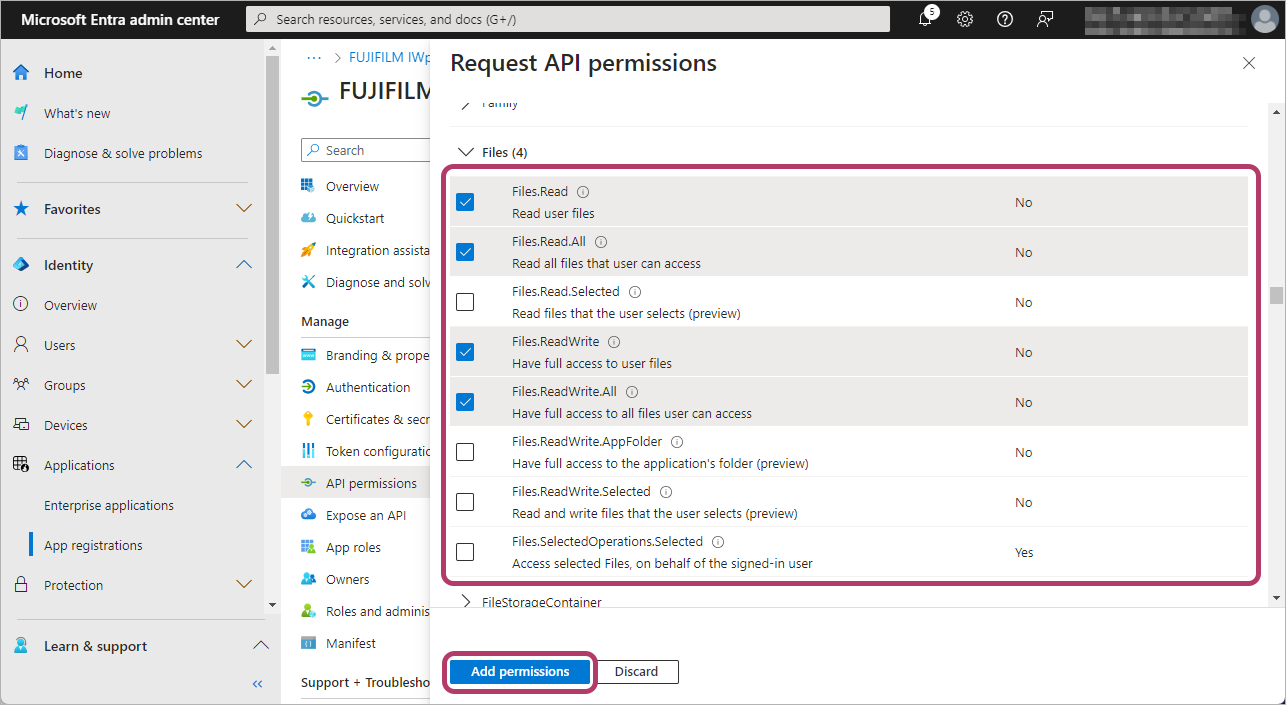

5. Select all the following check boxes, then click [Add a permission].
   • [OpenId permissions] > [offline_access]
   • [Files] > [Files.Read]
   • [Files] > [Files.Read.All]
   • [Files] > [Files.ReadWrite]
   • [Files] > [Files.ReadWrite.All]
   • [User] > [User.Read]



6. Select [Grant admin consent for {account name}], then click [Yes].

Making a Note of the Required Information

Make a note of the following values required for linking with FUJIFILM BI Direct.

• Application (client) ID
• Directory (tenant) ID

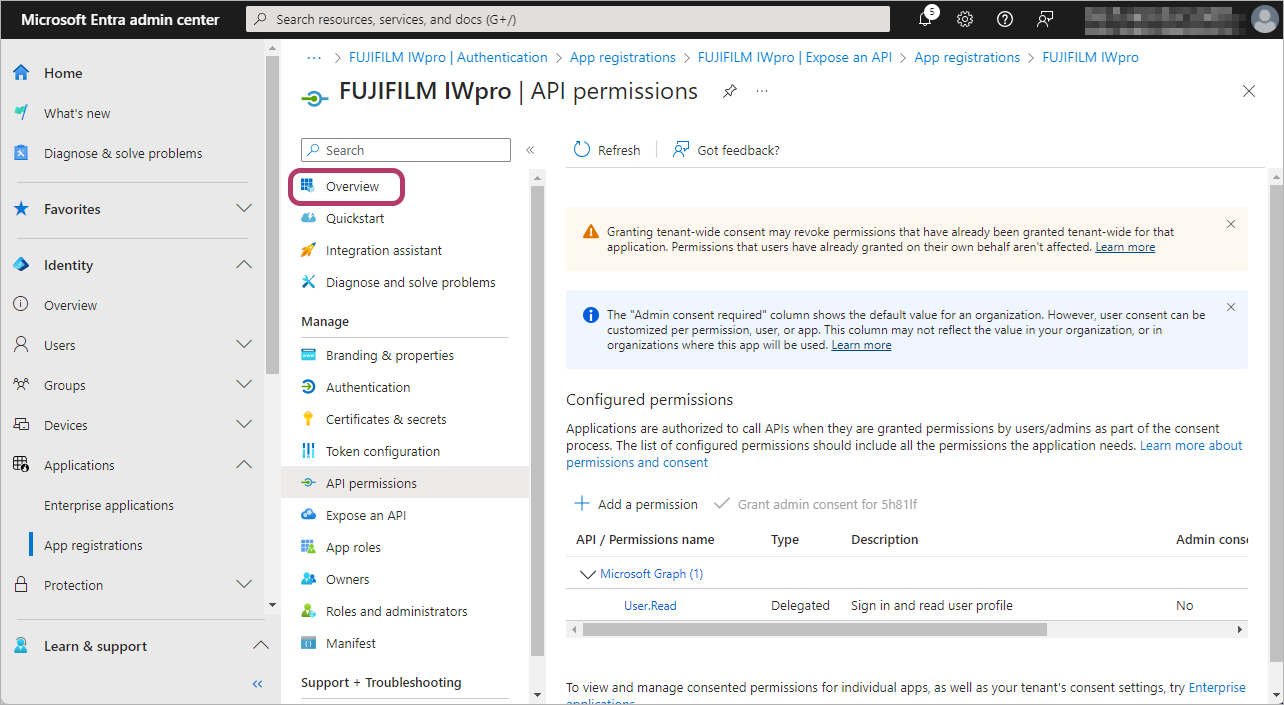

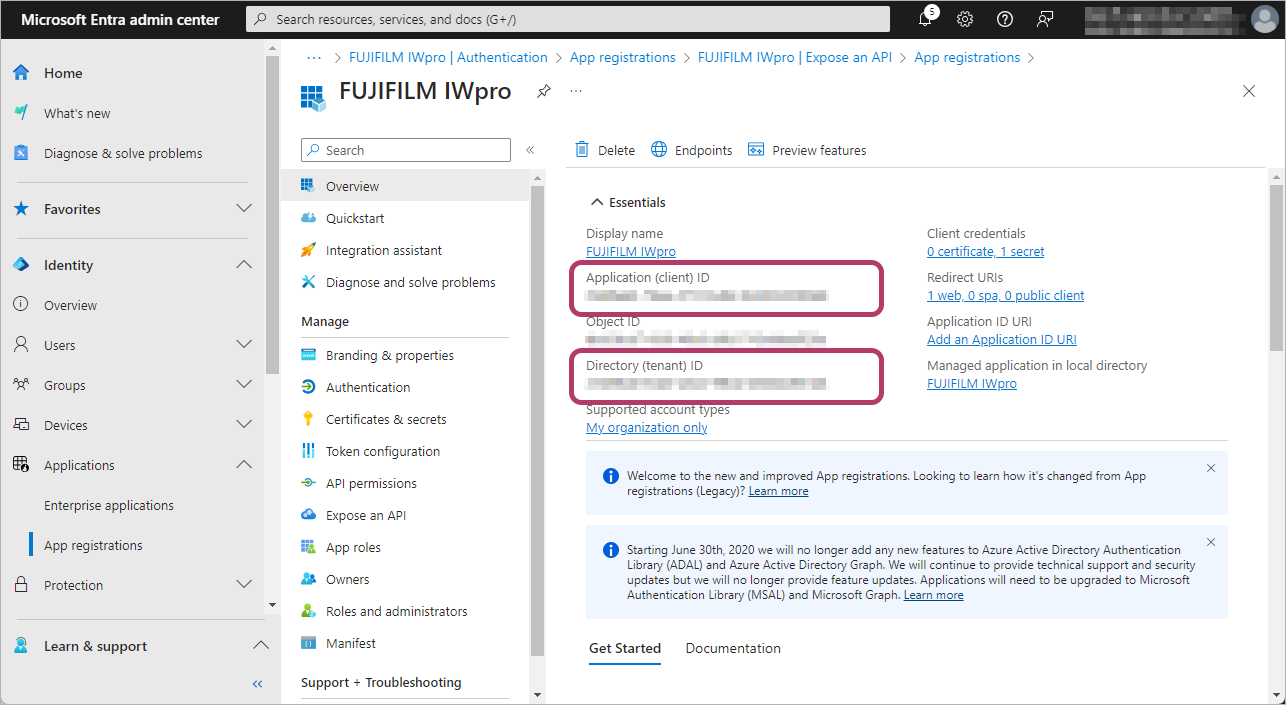

1. Click [Overview] in the menu.

2. Make a note of the values in [Application (client) ID] and [Directory (tenant) ID].


To return to the Initial Setup Guide for Scan Delivery/Fax Delivery, click here to proceed to "3 License Settings and Connection to OneDrive for Business".

Linking FUJIFILM IWpro and OneDrive for Business

• This operation is performed by the service administrator of FUJIFILM BI Direct.

1. Log in to FUJIFILM BI Direct.
   https://direct-fb.fujifilm.com/ap2/top
2. Click [Tenant Management].

3. Click [FUJIFILM IWpro] in the [Service] field.

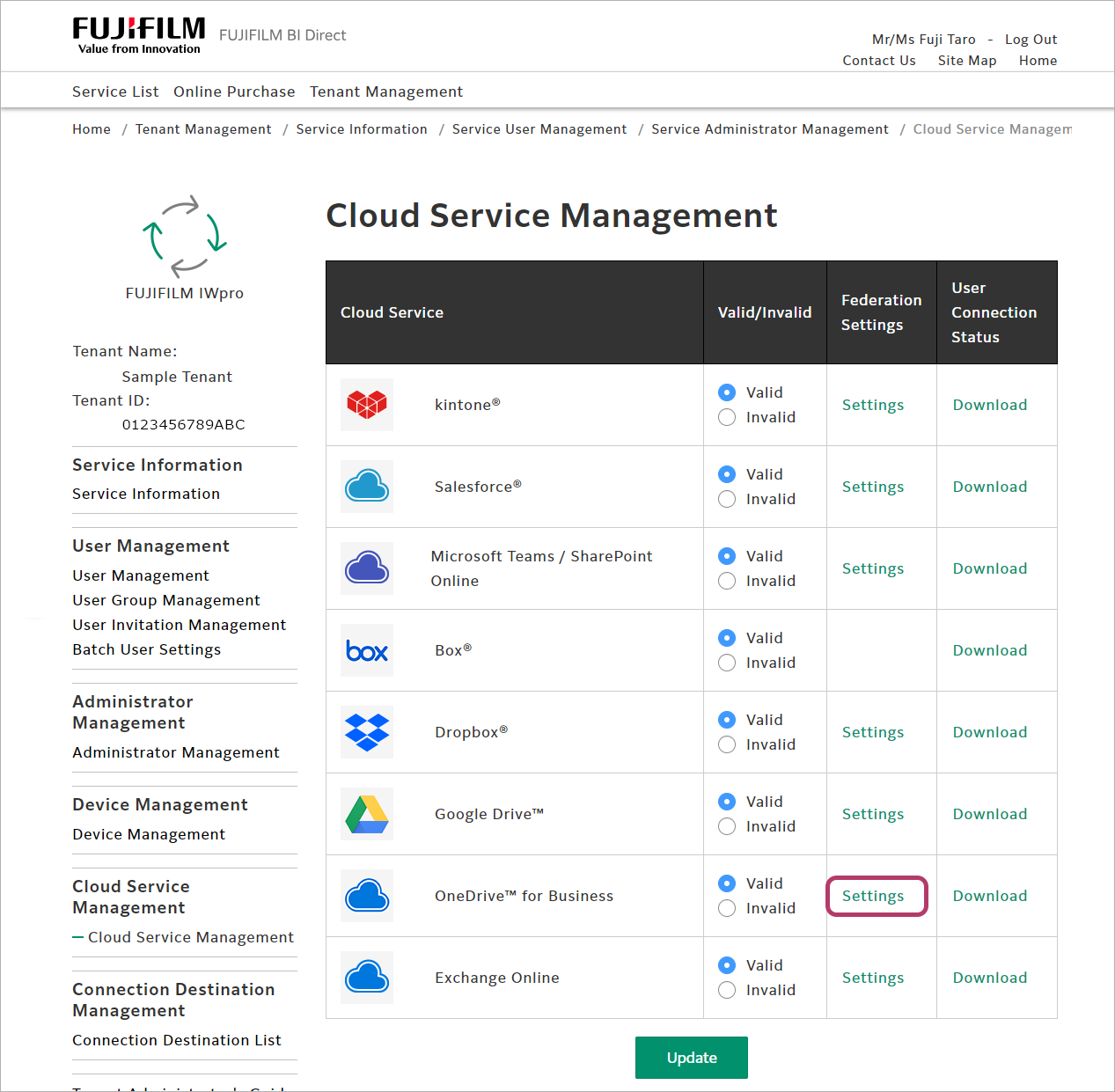

4. Click [Cloud Service Management] in [Cloud Service Management].

5. Click [Settings] for [OneDrive^™ for Business].

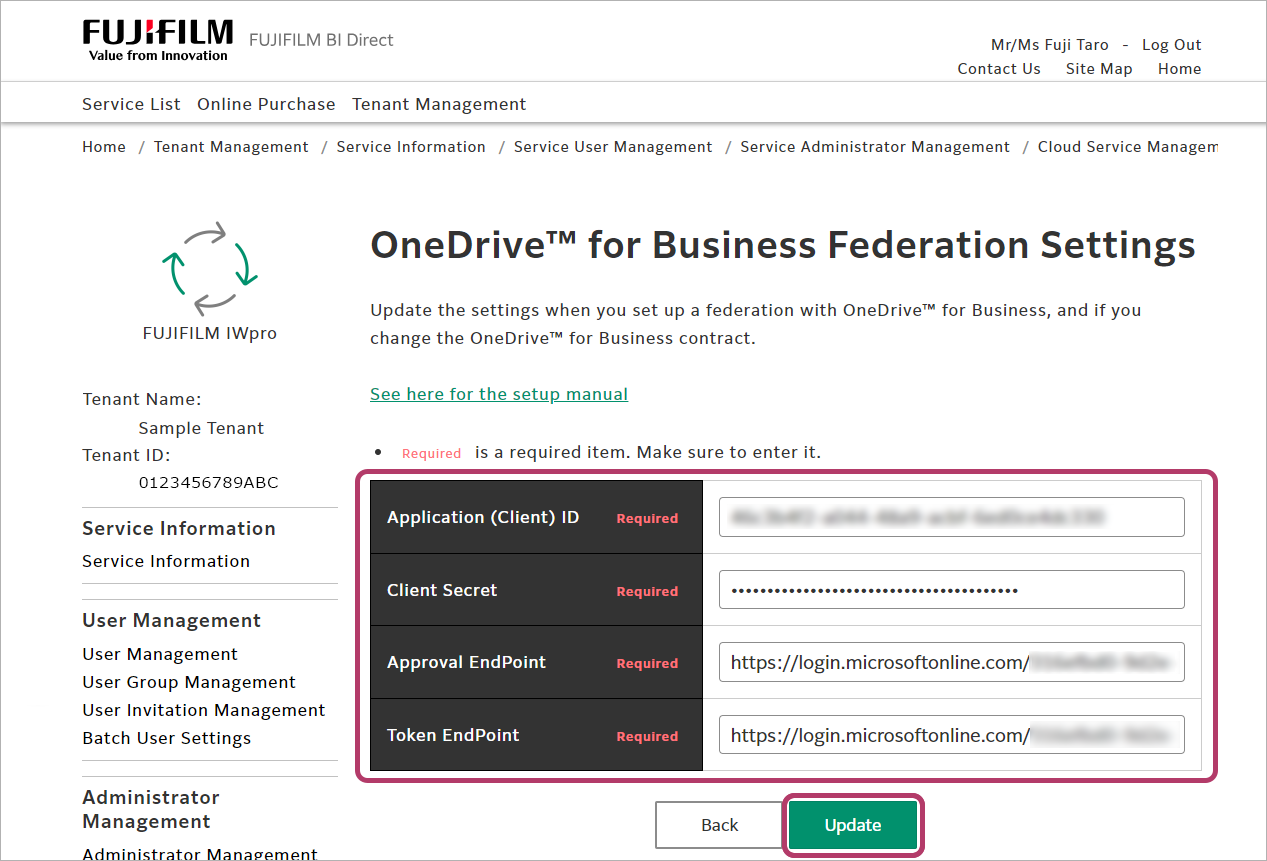

6. Configure the following settings, then click [Update].

   Item	Input Value
   Application (Client) ID	Value in [Application (client) ID]
   Client Secret	Value in [Client secrets]
   Approval EndPoint	https://login.microsoftonline.com/{value in [Directory (tenant) ID]}/oauth2/V2.0/authorize
   Token EndPoint	https://login.microsoftonline.com/{value in [Directory (tenant) ID]}/oauth2/V2.0/token



7. Click [OK].

User connection settings are required for using OneDrive for Business in FUJIFILM IWpro. For information on the procedure, see Individual User Connection Settings.
